When choosing The Boiler Guys, You will see our work speaks for itself.

You can rely on us as we are here to support you.


In-floor heating is the world’s most comfortable and efficient heating.

Depending on the structure of your home or the renovation there are several options to choose from for heated floors

. At The Boiler Guys, we provide all solutions to help get the job done.

When considering an infloor system, you can choose from the following options. These are the three main option however there are variations of each option that can be discussed for your particular application. We are experts and there is nothing we haven’t seen.

Staple Down

Heating pipes stapled to the subfloor and covered in a light weight concrete that provides greater efficiency through thermal mass and comfort to your home. This application is usually chosen during the renovation phase to allow for proper engineering of the home structure.

Staple Up

Tubing stapled to the underside of the subfloor between the joists. We then add a R12 insulation between the joists with a 2-4 inch air gap between the underside of the subfloor and the insulation. This allows the heating to equally heat the space. The heat then rises to the floor evenly. Although not as efficient as a staple down system, it is very effective and widely used.


Warmboard is an option for homes that are being renovated where structural load is a concern. Warmboard is best described as a subfloor with groves cut into it to lay the heating tubing. It has an aluminum top layer to allow for greater heat distribution. It is slightly more expensive however a good alternative.

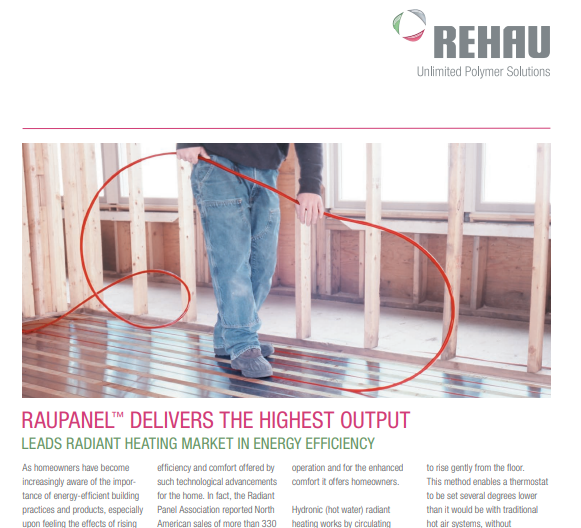

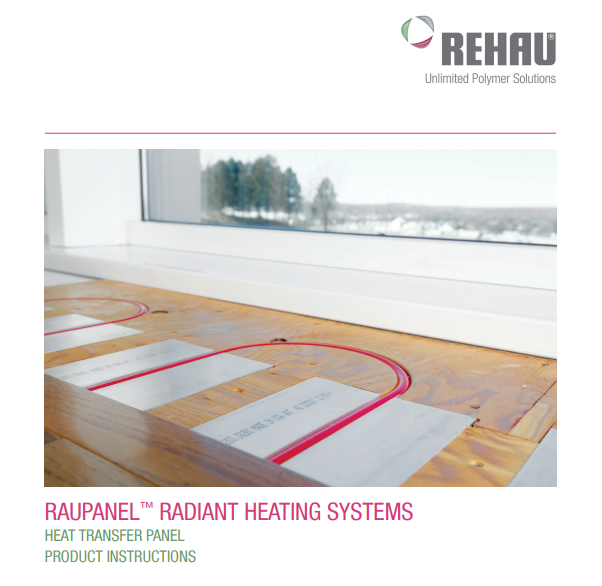

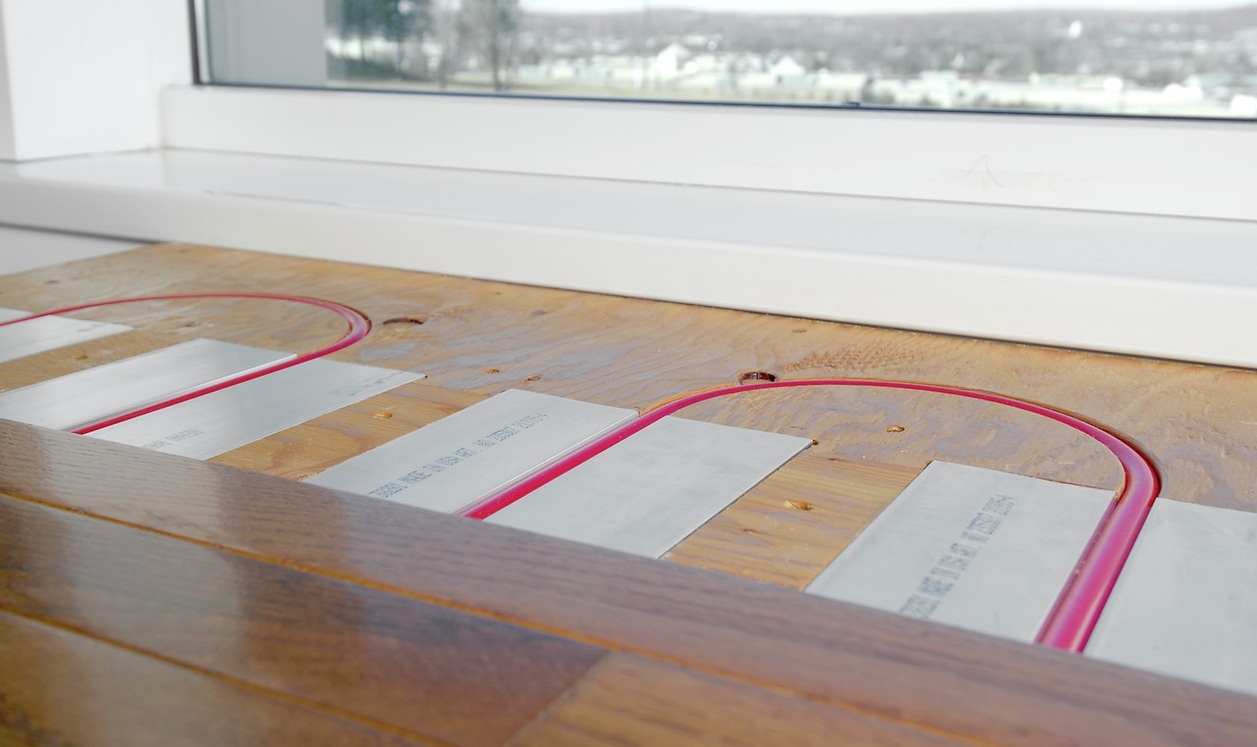

RAUPANEL system from REHAU allows you not only to run the most efficient system in you house but you’ll be doing that without adding major extra loads to your structure as RAUPANEL adds only 1.5 lb/ft2 (compare to 13-18 lb/ft2 for an overpour). Composed majority of aluminum panels RAUPANEL is also highly responsive and allows you to heat the room fast without the risk of overheating.


At The Boiler Guys, we have financing available through Vista Credit. Join the thousands of Canadians that love our financing program with excellent rates. You can get your new boiler and radiant system for monthly rates at no down payment options. We have financing and rental options available for anywhere up to $1M for any renovation home improvements, boiler installation and radiant heating.
